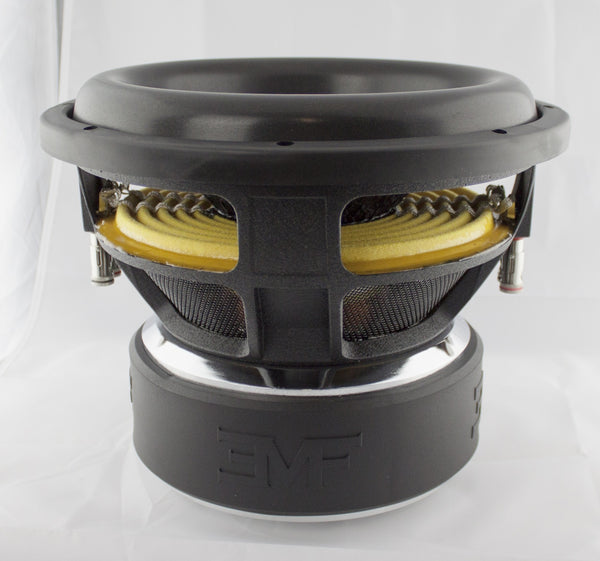

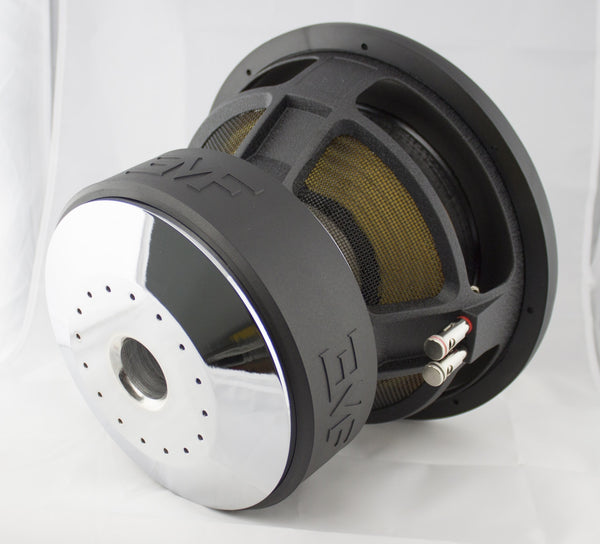

EMF Audio Banhammer 12"

Features:

• Power Handling - 2,000 watts RMS
• Xmax - 35mm one way

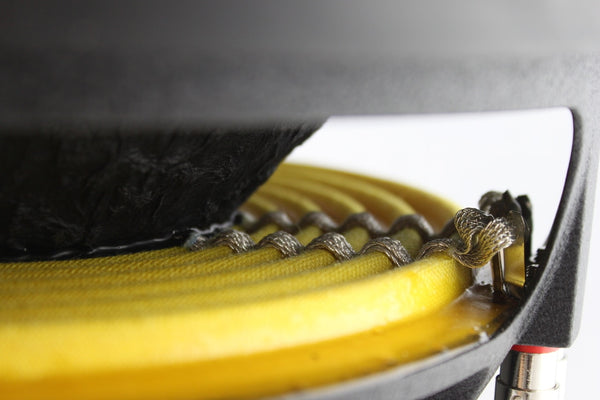

• 4" 4 layer copper voice coil rated up to 500 degrees Fahrenheit
• 10" linear roll spiders
• High velocity pole vent
• Additional rear gap venting
• 4 gauge spring loaded terminals
• High roll foam surround
• Designed for daily musical use with low bass and exceptional bandwidth
• Tooled magnet boot

Banhammer 12"

2,000 watts RMS
Fs         =     29.5954 Hz
Qes        =      0.3938
Qms        =      4.0886
Qts        =      0.3592
Vas        =     21.5454 L
Mms        =    424.5462 g
35mm xmax one-way

Recommended enclosure: 1.5-2 cu. ft ported (also 4th order friendly)

8.85" mounting depth
11.125" cut-out
12.5" outside diameter with gasket
Sub displacement - 0.15 cu. ft.
